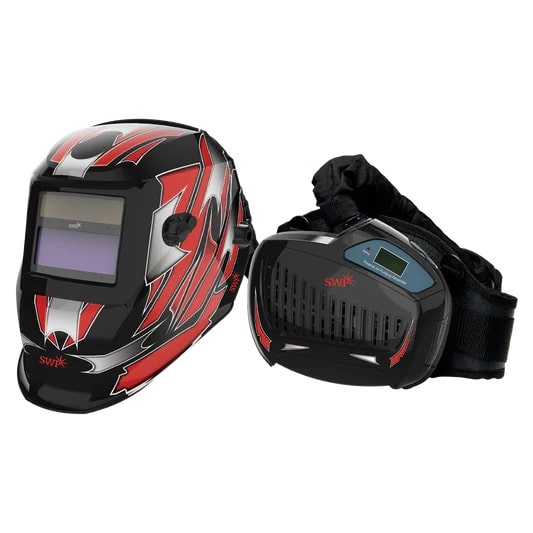

SWP POWERED AIR PURIFYING RESPIRATORY (PAPR) WELDING & GRINDING SYSTEMThe SWP Variable Shade Powered Air Purifying Respiratory Welding and Grinding Helmet offers a 100mm x 60mm viewing area combined with state of the art 2nd generation true colour technology. The true colour filter allows the user to see real colours, which can help to view the molten weld puddle. The highly effective four arc sensor sensors provide a switching time of 0.08ms.An Auto shading function maximises the capability of the ADF (Auto Darkening Filter) and improves protection by sensing the light and setting itself to optimal darkness to protect the wearer’s eyes. Likewise, manual settings can be selected to choose your own shade based on the welding application and your own preference.A 1/1/1/2 lens clarity classification is almost perfect in class. Featuring controls for adjusting sensitivity and delay time (0.1s to 0.9s). The unit is powered by one replaceable CR2450 battery.The latest PAPR (Powered Air Purifying Respirator) system provides 99.996% filtration, plus airflow of up to 230L/min. The filter system also has automatic vibration and audible / flashing light warnings for full filter alerts. The standard battery will power the blower unit for up to 10 hours of operating time.A heavy duty battery can be purchased as an addition if an increased operating time is required. The unique headgear design includes a two state selection switch to allow for directing the airflow around the mask, increasing the anti fogging capacity. Features & BenefitsMedium size welding ADFWorking from 3 amps ideal for TIG and Plasma welding.Auto shading to maximise the ADF filter and protection.2nd Generation True Colour – Class leading.Light State shade 3 due to the new generation True Colour technology.Manual shade settings on internal ADF.Fully adjustable sensitivity and delay to optimise setting for all types of welding.SpecificationFilter Dimensions: 110mm x 90mm x 8.5mmViewing Size: 97mm x 47mmCE Classification: 1/1/1/2Sensors: 4Auto Shade: YesLight Shade: 3Shade Deviation of Auto: /- 2Switching Time: 0.08msGrinding Function: Yes – External control switchLock Shade-Grinding: YesSensitivity: AdjustableDelay Time: Yes Level 1-5 0.1-0.9msBattery Indicator: YesOperation Temperature: -10F -65FStoring Temperature: -77F-185FPower Supply: 1 x CR2450Minimum Amperage 3A
