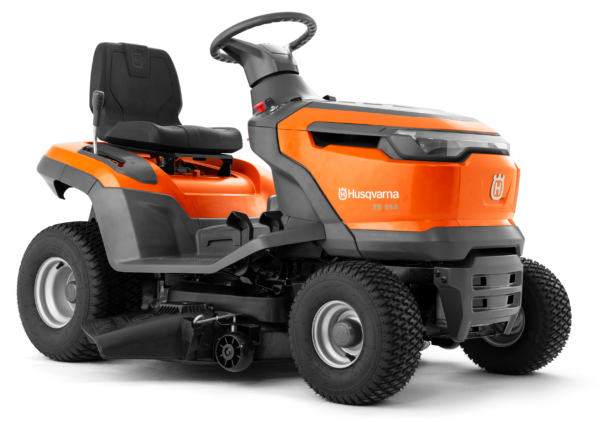

Practical garden tractor engineered for easy operation on large lawns and in narrow passages. The TS 114 combines a compact footprint with ergonomic controls, a spring-assisted, lever-mounted cutting deck and a hydrostatic dual-pedal drive to reduce strain and simplify routine mowing, storage and basic maintenance. Compact design for tight spaces The TS 114 is purposely compact to make manoeuvring through narrow passages straightforward and to reduce the space required for storage and maintenance. Pedal-operated hydrostatic transmission Hydrostatic drive with separate pedals for forward and reverse gives intuitive speed and direction control. The unit uses a Hydro-Gear transmission for smooth, stepless adjustment. 95 cm side-discharge cutting deck with anti-scalp wheels Equipped with a 95 cm side-discharge deck and anti-scalp wheels to reduce scalping on uneven turf. Cutting blades engage electrically for quick, reliable operation. Key specification Article ID 970622501 Cutting deck width 95 cm Transmission Hydrostatic Full specification Cylinder displacement (metric) 452 cm³ Cutting width (metric) 95 cm Exhaust emissions (CO₂ EU V) 754 g/kWh Sound pressure level at operators ear (LpA) 83.4 dB(A) Sound power level, guaranteed (LWA) 97.6 dB(A) Packaging length 1700 mm Packaging width 1135 mm Packaging height 850 mm Power source Petrol Cylinders 1 Net power at preset rpm Energy 9.0 kW Engine brand Husqvarna Net power at preset rpm 2800 rpm Engine name HS 452AE Transmission type Hydrostatic Motor/engine manufacturer Husqvarna Base machine, length (metric) 166.5 cm Base machine, height (metric) 110 cm Oil filter Yes Drive method Dual pedal-operation Speed reverse max (metric) 5 km/h Hour meter type Digital Seat material PU Seat back height Medium Steering wheel type Ergonomic Tyre dimensions, front 15×6-6 Tyre dimensions, rear 18×8.5-8 Generator 12 A Nose roller No Anti-scalp wheels 2 Front-End Protection Available as accessory Collector Available as accessory Transmission Brand Hydro-Gear Base machine, width (chute up) (metric) 112.7 cm Base machine, width (chute down) (metric) 121 cm Key features Compact design Compact design for effortless navigation in narrow passages and easy storage while not in use. Pedal-operated hydrostatic transmission Easy speed and direction control with pedal-operated hydrostatic transmission. Separate pedals for forward and reverse. Dual pedal drive Dual pedal drive for better drive control and easy, intuitive operation Anti scalp wheels The cutting deck is equipped with anti-scalp wheels, which reduce the risk of scalping when cutting uneven lawns. Lever-Mounted cutting height adjustment Easily accessible cutting height adjustment for improved ergonomics.The spring-assisted cutting height adjustment makes setting the desired height even easier. Ergonomic controls Comfortable driving position and operation thanks to the adjustable seat and easy-access controls. Spring-assisted cutting height adjustment for easy setting of the desired height. Adjustable driver seat Tool-free adjustment of seat position to quickly set a comfortable driving position. Towing hook included Additional functionality thanks to the included towing hook which enables the use of many accessories. Dual headlights Dual headlights at the front for clear visibility when driving in dark conditions. Turn key start Easy to get operating under any weather condition and no choking needed. Just turn the key and go. ROS in start key ROS is activated with the start key for quick access to reverse mowing, and to minimise the risk of the function being used unintentionally. Hour meter Hour meter for easy control of operating time and service and maintenance intervals. Electric engagement of cutting blades Easy engagement of cutting blades; simply pull the switch on the control panel. Fuel level window Fuel level window makes it easy to check the fuel level. Side discharge cutting deck Equipped with a 95cm side discharge cutting deck. Control levers on one side Control levers on only one side make it easy to get in and out of the seat on the other side. Features FAQs Will this fit my machine? Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order. Do I need any extra brackets or fitting kits? Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup. Can you fit it for me? Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product). What is the cutting width? The TS 114 has a 95 cm side-discharge cutting deck. How is speed and direction controlled? It uses a pedal-operated hydrostatic transmission with separate pedals for forward and reverse. The specified maximum reverse speed is 5 km/h. Can I tow accessories or fit a collector? A towing hook is included for towing accessories. Collectors and front-end protection are available as accessories to purchase separately.
