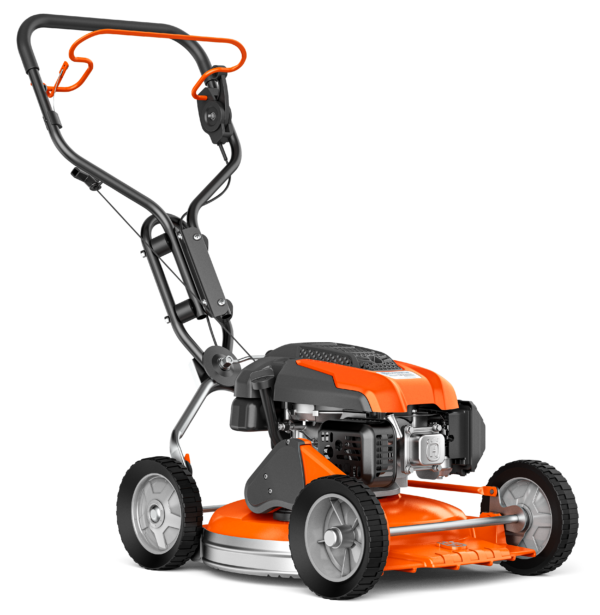

Compact, commercial-grade BioClip® petrol mower built on the trusted KLIPPO platform. The LB 548SQe pairs a 48 cm aluminium cutting deck with a Husqvarna HS 166AP engine, front-wheel drive and an anti-vibration, side-adjustable handle—designed for durable, precise work in narrow or complex areas and as a trimming complement to ride-on or robotic machines. Built for durability Heavy-duty cast aluminium chassis and commercial-spec components give long service life under frequent use, reducing downtime and workshop visits. Reliable commercial engine Fitted with the Husqvarna HS 166AP engine — engineered for easy starting and sustained performance in daily, heavy-duty applications. Efficient BioClip® mulching Dedicated BioClip® cutting method finely chops clippings and returns them to the turf as natural fertiliser, reducing waste and the need for collection. Key specification Article ID 970609001 Cutting width 48 cm Drive system Self-propelled, single speed Collection volume 0 l Full specification Product size height 110 cm Product size length 112 cm Product size width 51.5 cm Cylinder displacement (metric) 166 cm³ Cutting width (metric) 48 cm Connectivity Not applicable Exhaust emissions (CO₂ EU V) 922.38 g/kWh Sound pressure level at operators ear (LpA) 79 dB(A) Sound power level, guaranteed (LWA) 93 dB(A) Packaging length 857 mm Packaging width 525 mm Packaging height 479 mm Power source Petrol Sound power level, measured 92 dB(A) Weight (complete product w/o side packed articles) (metric) 34.5 kg Working area capacity (±20) (metric) 800 m² Battery capacity 0 Ah Cutting height max (metric) 60 mm Cutting height min (metric) 30 mm Cutting height adjustment Central, spring-assisted Net power at preset rpm Energy 2.75 kW Engine brand Husqvarna Net power at preset rpm 2900 rpm Engine name HS 166AP Engine cooling Air Engine lubrication type Splash Speed forward max (metric) 4.5 km/h Collector volume (metric) 0 l Wheelbase (metric) 52 cm Drive system Self-propelled, single speed Collector type None Rims, material Steel Vibrations handlebar 4 m/s² Drive wheels Front Handle type Anti-vibrated Speed forward min (metric) 0 km/h Handle height adjustment 2 Step Foldable handle No Soft grip Yes Wheel size, Front (metric) 203 mm Wheel size, Rear (metric) 203 mm Side adjustable handle Yes Cutting methods BioClip® Cutting deck material Aluminium Cutting height steps 6 Cutting width (imperial) 19 in Throttle control No BioClip® kit Not available as accessory (NOT AVAILABLE) Water hose connection No BioClip® plug N/A Wheel bearing, front/rear Yes/Yes Blade brake clutch (BBC) No Key features Aluminium chassis Heavy-duty, cast aluminium chassis provides increased strength and longer life. Side adjustable handlebar The handlebar is adjustable both horizontally and vertically for optimum working positions and improved ergonomics. Husqvarna HS 166AP engine HS 166AP, a powerful and fully commercial walk-behind engine from Husqvarna. Designed for high reliability and easy starting. High specified components to withstand tough daily usage and for guarantee longest possible service-life. Stainless steel rims 8-inch stainless steel rims with double-sealed bearings. Rubber tyres provide deeper tread depth for increased traction and a more comfortable drive. Central cutting height adjustment Quick and easy adjustment of the grass cutting height. One lever effects the whole deck. BioClip® Cutting method BioClip®. The grass is cut twice and finely chopped before being returned to the lawn as natural fertiliser. Features FAQs Will this fit my machine? Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order. Do I need any extra brackets or fitting kits? Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup. Can you fit it for me? Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product). What is the cutting width? The cutting width is 48 cm (19 in). Does this model have a grass collector? No. The LB 548SQe is a dedicated BioClip® (mulching) model and has no collector volume. How do I change cutting height? Cutting height is adjusted centrally with a spring-assisted lever. Range is 30–60 mm across six steps for quick on-site changes.
