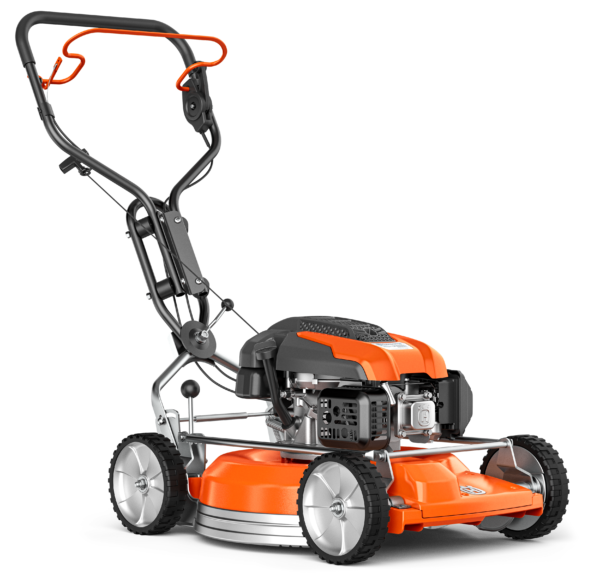

A commercial-grade, front-wheel‑drive BioClip® walk‑behind mower with a 53 cm cutting deck and Husqvarna HS 166AP engine. Built with a cast aluminium deck, aluminium rims and an anti‑vibration, side‑adjustable handle to give reliable cutting performance and improved operator comfort on mid‑sized to larger areas. Cast aluminium chassis Heavy‑duty cast aluminium deck resists corrosion and adds strength for daily commercial use, extending service life compared with pressed steel decks. Aluminium rims with deep‑tread tyres 8‑inch cast aluminium rims with double‑sealed bearings and deeper tread tyres improve traction and ride comfort, especially on wet or uneven ground. Commercial HS 166AP engine The HS 166AP is a purpose‑built, high‑spec commercial petrol engine designed for easy starting and robust daily use, reducing downtime on sites. Key specification Article ID 970609101 Cutting width 53 cm Drive system Self-propelled, single speed Collection volume 0 l Full specification Product size height 108 cm Product size length 117 cm Product size width 53 cm Cylinder displacement (metric) 166 cm³ Cutting width (metric) 53 cm Connectivity Not applicable Exhaust emissions (CO₂ EU V) 922.38 g/kWh Sound pressure level at operators ear (LpA) 83 dB(A) Sound power level, guaranteed (LWA) 96 dB(A) Packaging length 994 mm Packaging width 594 mm Packaging height 458 mm Power source Petrol Sound power level, measured 95 dB(A) Weight (complete product w/o side packed articles) (metric) 38.5 kg Working area capacity (±20) (metric) 1000 m² Battery capacity 0 Ah Cutting height max (metric) 65 mm Cutting height min (metric) 28 mm Cutting height adjustment Central, spring-assisted Net power at preset rpm Energy 2.75 kW Engine brand Husqvarna Net power at preset rpm 2900 rpm Engine name HS 166AP Engine cooling Air Engine lubrication type Splash Speed forward max (metric) 4.8 km/h Collector volume (metric) 0 l Wheelbase (metric) 59.5 cm Drive system Self-propelled, single speed Collector type None Rims, material Aluminium Vibrations handlebar 3.4 m/s² Drive wheels Front Handle type Anti-vibrated Speed forward min (metric) 0 km/h Handle height adjustment 2 Step Foldable handle No Soft grip Yes Wheel size, Front (metric) 203 mm Wheel size, Rear (metric) 203 mm Side adjustable handle Yes Cutting methods BioClip® Cutting deck material Aluminium Cutting height steps 5 Cutting width (imperial) 21 in Throttle control No BioClip® kit Not available as accessory (NOT AVAILABLE) Water hose connection No BioClip® plug N/A Wheel bearing, front/rear Yes/Yes Blade brake clutch (BBC) No Key features Aluminium chassis Heavy-duty, cast aluminium chassis provides increased strength and longer life. Aluminium rims 8-inch cast aluminium rims with double-sealed bearings. Rubber tyres provide deeper tread depth for increased traction and a more comfortable drive. Husqvarna HS 166AP engine HS 166AP, a powerful and fully commercial walk-behind engine from Husqvarna. Designed for high reliability and easy starting. High specified components to withstand tough daily usage and for guarantee longest possible service-life. Cutting height adjustment Comfortable spring-loaded central cutting height adjustment featuring 5 increments with a span from 27 to 64 mm. BioClip® Cutting method BioClip®. The grass is cut twice and finely chopped before being returned to the lawn as natural fertiliser. Side protection bumper Side protection bumper for addtional protection when mowing next to walls edges or other obstacles. Side adjustable handlebar The handlebar is adjustable both horizontally and vertically for optimum working positions and improved ergonomics. Features FAQs Will this fit my machine? Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order. Do I need any extra brackets or fitting kits? Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup. Can you fit it for me? Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product). What is the cutting width and how is the cutting height adjusted? Cutting width is 53 cm. The mower has a central, spring‑assisted cutting height adjustment with five steps; cutting height range is 28–65 mm (model specification). Is the mower self‑propelled and which wheels drive it? Yes. It is self‑propelled with a single‑speed drive system and front drive wheels for straightforward handling and control. Does it collect grass clippings or use a catcher? This model is configured for BioClip® mulching and does not have a grass collector (collector volume 0 l). Clippings are finely chopped and returned to the lawn as a natural fertiliser.
